- Size: 115
- Place of Origin: China

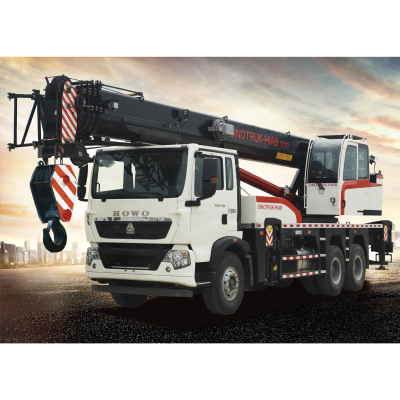

- Brand Name: SINOTRUK-HIAB
- Model Number: TC113
- Weight: 32950.000 kg
Performance Advantages
I.Chassis
1.Well-developed service network of SINOTRUK T5G universal commercial chassis can provide in-time after-sale service, convenient maintenance and fast spare parts supply.
2.The vehicle is energy saving by using SINOTRUK MAN engine of strong power, state V standard emission and scientific matching.
3.TGA cab with MAN technology and ergonomics design makes driving more comfortable.
4.Hendrickson rubber rear suspension enables excellent bearing capacity and convenient maintenance.
II. Superstructure
1. Strong lifting capacity achieved by using imported high strength steel plate for first and second boom. Load lifting moment with base boom is 1152KN.m.Load lifting moment with longest boom outreach is 604KN.m.
2. Excellent lifting capacity enabled with a large stabilizer transversal span of 6.2m.

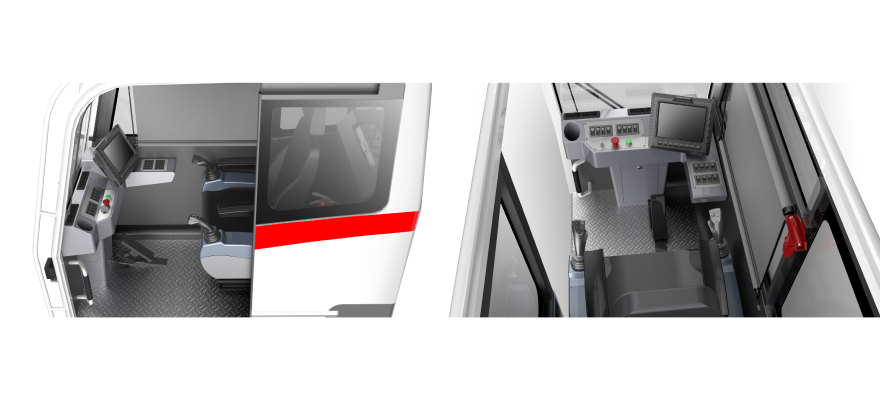

3. Operating cab uses abrasive resistant steel plate and adopts push-pull sliding structure for cab’s door. Full cover plastic interior, large view glass and adjustable seat makes operation easier and more comfortable.
III. Hydraulic System
1. High pressure variable pump, electric control variable motor plus load sensitive technology applied for the hydraulic system enable safer operation of hoisting system, wider speed adjusting range and high lifting efficiency.
2. Electric control HOSCO load sensitive main valve has low heat value and fast response speed. Optimized valve element combing electric control joysticks makes operation more accurate and micro-operation more stable. Small LS feedback impact increases service time of pump while specially designed relief valves enables safer operation.
3. By adopting electric control gravity dropping, boom lowering down operation is energy saving, steady with little impact and achieves higher control accuracy.
- Size: 115
- Place of Origin: China
- Brand Name: SINOTRUK-HIAB
- Model Number: TC113
- Weight: 32950.000 kg
Dimension | Unit | TC113 |
Overall length | mm | 12400 |
Overall width | mm | 2500 |
Overall height | mm | 3735 |
Stabilizer longitudinal span | m | 6.55 |
Stabilizer transversal span | m | Full extension 6.2 Half extension 4.2 |
Tail turning radius | mm | 3258 |
Weight | ||
Total weight in travel | kg | 32950 |
Front axle load | kg | 6950 |
Rear axle load | kg | 26000 |
Power | ||
Engine model | MC07.31-50 | |
Engine rated power | kW/(r/min) | 225/2300 |
Engine rated torque | N.m/(r/min) | 1230/1200-1800 |
Working Speed | ||
Boom lifting time/lower down time | s | 47/55 |
Boom full extension/retraction time | s | 99/112 |
Max. swing speed | r/min | 2.5 |
Max. speed of main winch (single rope) (no load) | m/min | 119 |
Max. speed of aux. winch (single rope) (no load) | m/min | 110 |
Max. travel speed | km/h | 85 |
Min. turning diameter | m | 20 |
Min. ground clearance | mm | 230 |
Max. grade ability | % | 35 |
Fuel consumption for 100km | L | ≈40 |
Main performance | ||
Max. rated total lifting capacity | kg | 25000 |
Max. lifting moment with base boom | Kn.m | 1137 |
Max. lifting moment with full boom extension | Kn.m | 586 |
Base boom | m | 10.6 |
Fully extended boom | m | 40.8 |
Fully extended boom jib | m | 50.3 |
